Welcome to the SDRstickTM product page. Here you will find information on Zephyr Engineering, Inc's new line of compact SDRs.
To keep up to date on the latest breaking news, for availability information and support, please subscribe to our Yahoo group:

http://groups.yahoo.com/groups/SDRstick

New! UDPSDR-HF2 100kHz - 55MHz SDR Receiver

UDPSDR-HF2 SDRstickTM

Digital Down Conversion Receiver

  • 100 kHz - 55MHz continuous coverage

  • LTC2208 16-bit @ 122.88MSPS ADC

  • LTC6400 20dB LNA

  • 0-31dB step attenuator in 1dB steps

  • Low-phase noise oscillator: -152dBc/Hz @ 10kHz

  • External LVDS sampling clock input

  • External sine-wave input for GPSDO

  • Audio CODEC with headphone output

  • Power requirements: 5V@800mA

  • Uses BeMicro SDK for FPGA engine

  • Customization available to suit specific applications

  • Estimated price under $500

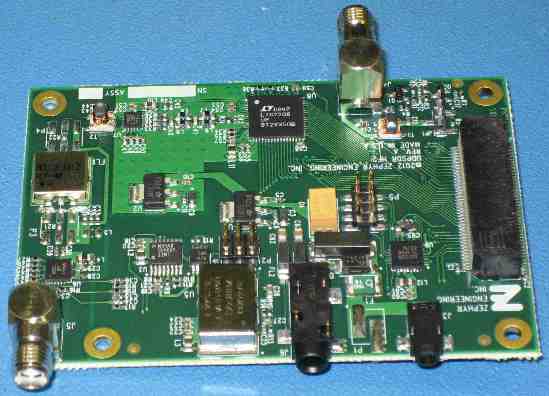

Prototype UDPSDR-HF2 SDRstickTM

 Download Preliminary Brochure (PDF)

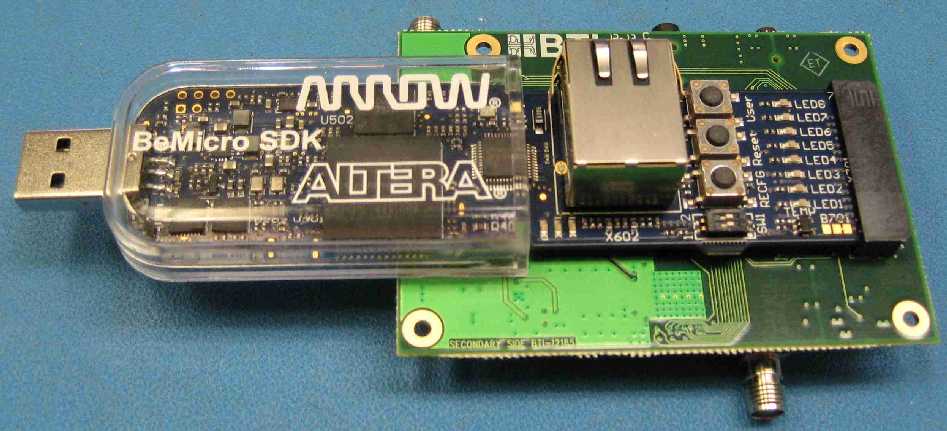

UDPSDR-HF2 SDRstickTM

with BeMicro SDK

  • Altera Cyclone IV EP4CE22 FPGA

  • 10M/100M Ethernet Port

  • 64MByte mobile DDR SDRAM

  • Micro-SD card socket

  • On-board serial configuration Flash

  • Embedded USB Byte Blaster

  • BeMicro SDK $79 at Arrow Electronics

UDPSDR-HF2 SDRstickTM and BeMicro SDK make a completeSDR receiver

Click Here for a sneak preview of other SDRs in the SDRstickTM line
Questions? Contact us here
