ZPCI.2466 66 MHz Active Extender Board

The ZPCI.2466 6U active extender board not only gets your board out in the clear for easy access, it also provides an on-board PMC slot for a PCI bus analyzer or PMC board debug.

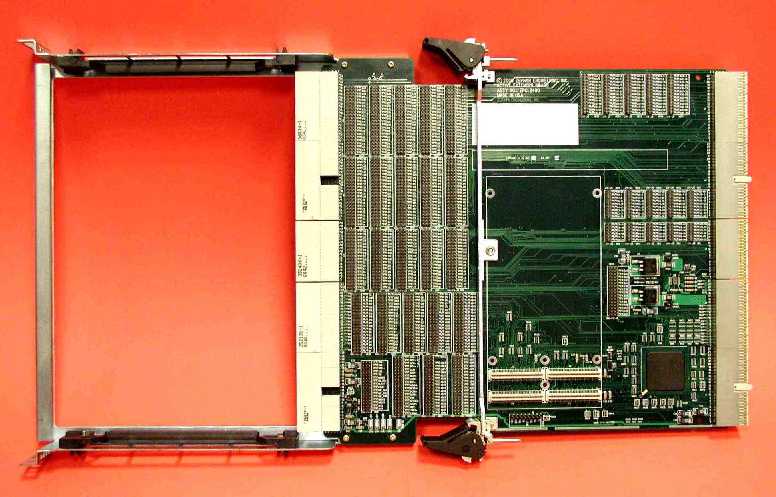

zpci.2400 picture

This extender board locks into the card cage with its own injectors. a transparent PCI bridge on the board enables testing of CPCI boards while maintaining compliance with PICMG 2.0 R3.0 specifications.

Additional features include:

  • Clearly marked test points to show all CPCI bus signal names.

  • User I/O test points are marked with connector and pin numbers.

  • Every pin is isolatable and can be opened by removal of a 0-ohm resistor.

  • Plugging on a 2mm shunt easily restores the connection.

  • Short circuit protection for +3.3V, +5Vv, +12V and -12V supplies.

  • Individual indicator LEDs show board power status at a glance.

  • Available in 32-bit and 64-bit versions.

The advanced features and ease of use of this extender board make the ZPCI.2466 an excellent choice for both CPCI and PMC board testing.


ZPCI.2466 Data Sheet (pdf)
