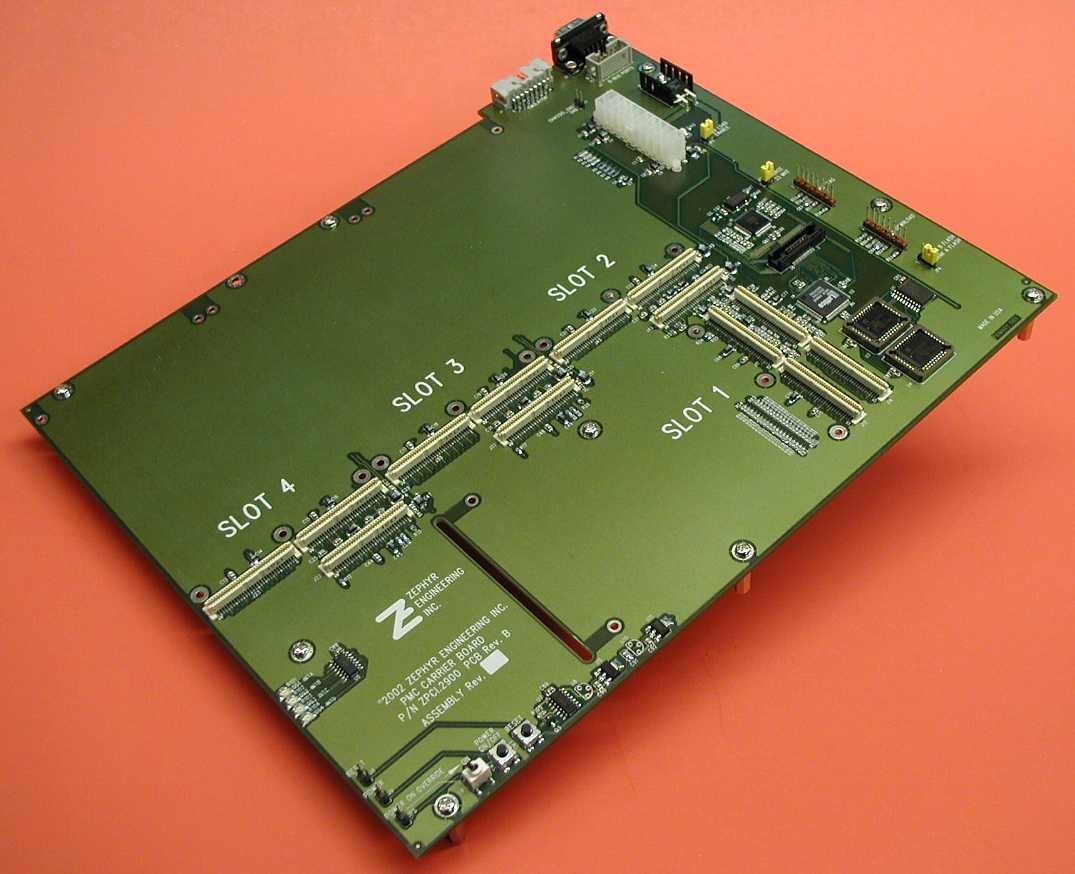

ZPCI.2900 Quad PMC Carrier

The ZPCI.2900 Quad PMC Carrier is a high-performance platform suitable for use with 64-bit 66 MHz PMC form-factor encryption/decryption cards.

This ATX form-factor base board accepts standard PMC cards. It is ideal for use with the PrPMC800 Monarch CPU Module, the ZPCI.3900 MPC190 Security Processor and the ZPCI.3100 Gigabit Ethernet Card.

Features include:

  • Monarch CPU slot plus three IEEE P1386.1 PMC slots

  • Dual speed clock generator automatically sets PCI bus speed to 66 or 33 MHz

  • 1M byte of on-board socketed flash prom

  • On-board PCI bus arbiter

  • Uses standard ATX power supply

  • ATX I/O area accessible serial debug port

The high performance of the ZPCI.2900 Quad PMC Carrier makes it an excellent choice for your security processor applications.

ZPCI.2900 Data Sheet (pdf)
