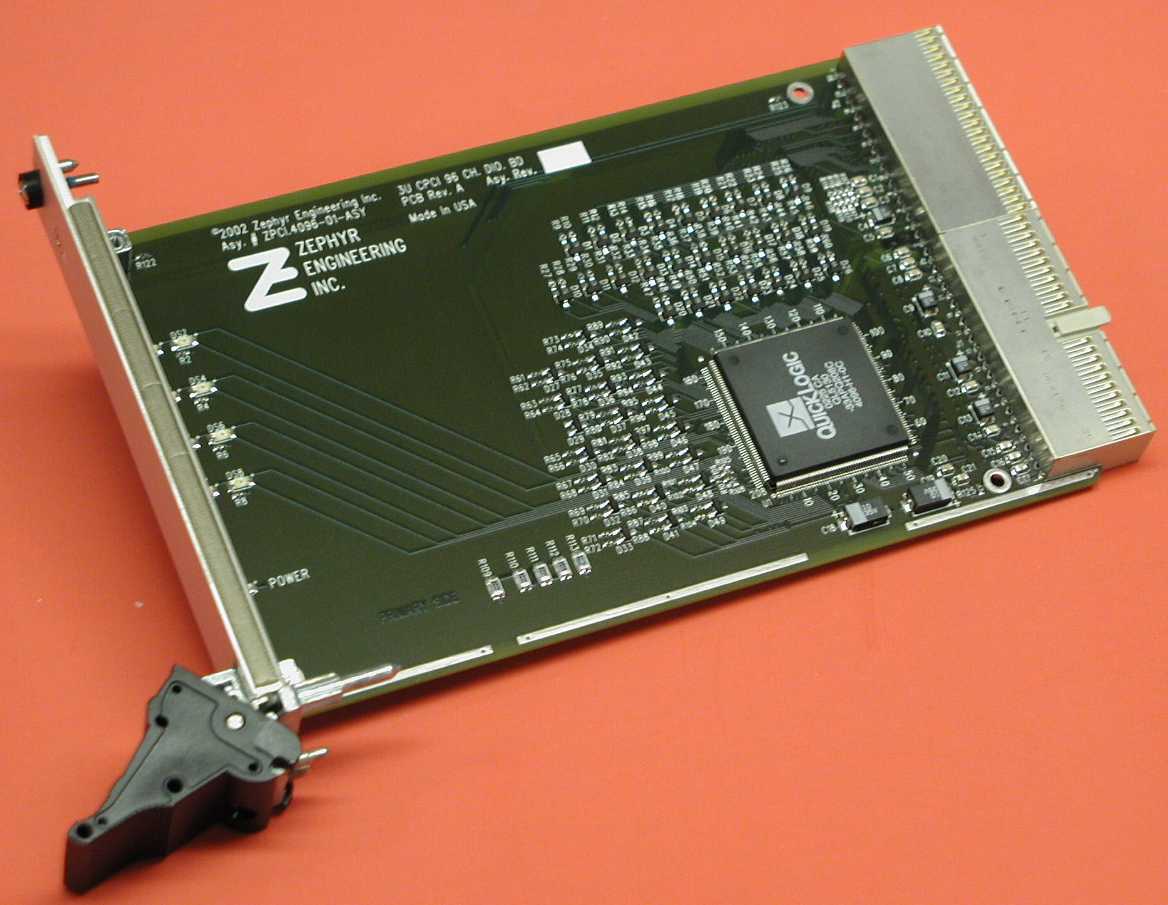

ZPCI.4096 96-channel Digital I/O PCI Card

The ZPCI.4096 96-channel Digital I/O CPCI card provides the user with 96 channels of individually programmable LVTTL digital I/O.

This 3U rear-panel I/O CPCI card is a target-only design with a 33 MHz 32-bit CPCI interface, and meets PICMG 2.0 R3.0.

Features include:

  • Each pin programmable as either input or output

  • Two edge-detectors on each I/O pin

  • 5V tolerant LVTTL inputs with transient suppression

  • Each output sources 12ma and sinks 16ma

  • Individually maskable interrupts

  • Eight on-board user-controllable LEDs

  • Programmable watchdog timer

  • Rear panel I/O uses standard transition cards

The versatility of the ZPCI.4096 96-channel Digital I/O CPCI card makes it an excellent choice for your CPCI industrial control applications.

ZPCI.4096 Data Sheet (pdf)
